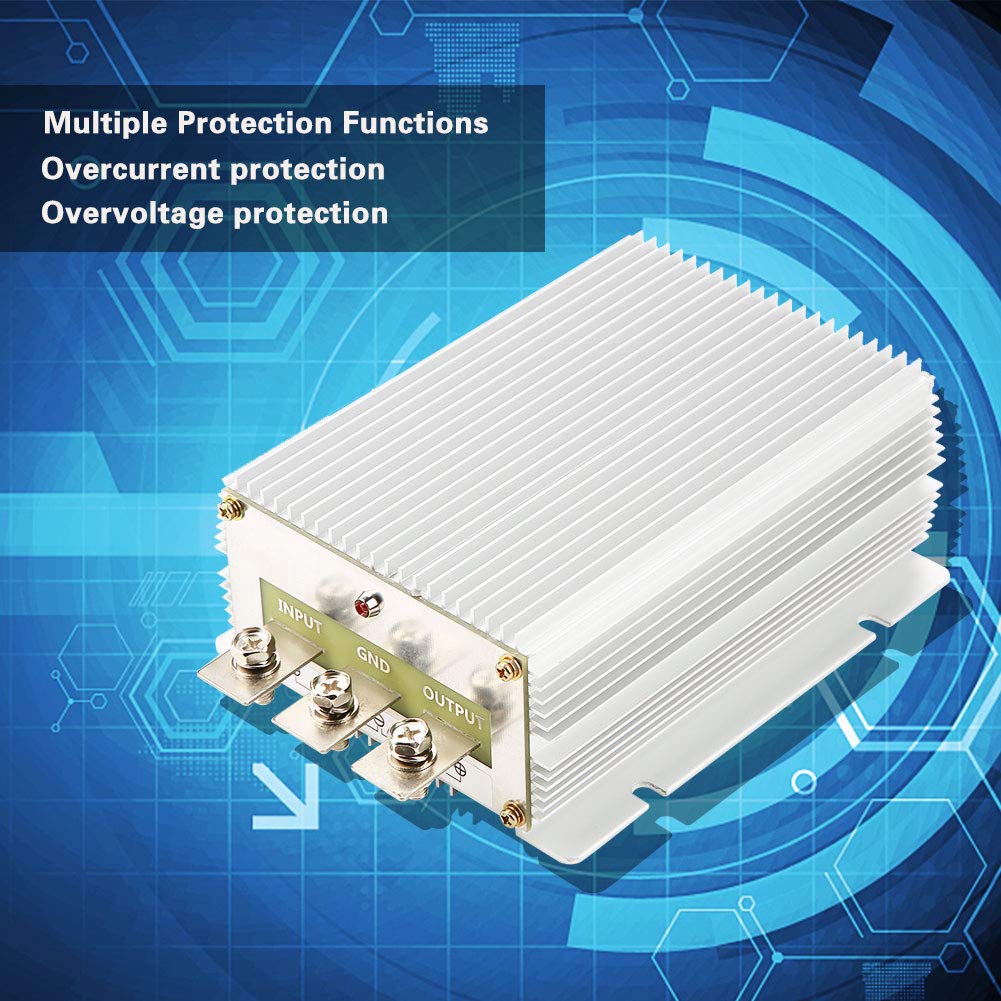

Converter, WG-24S1260 24V to 12V 60A 720W DC-DC Converter Non-Isolated Voltage Converter High Power Step-Down Power Source

Features: 1. Adopting imported precision components, conversion efficiency up to 96%, stable output. 2. Wide input voltage, built-in overcurrent, overvoltage, over temperature, short circuit and other automatic functions. 3. Sealed with thermal conductive silicone, IP68 anti-shock. 4. Die-cast aluminum shell, compact size, convenient to install. 5. Quality assurance, service life up to 100,000 hours. Specification: Model: WG-24S1260 Input voltage: DC 24V Input voltage range: DC 18-36V Conversion efficiency: 96% Output voltage: 12V Output current: 60A Rated output power: 720W Output peak power: 130% Voltage regulation ratio: <1% Load regulation ratio: <2% No load current: <40mA <300mV Working temperature: -35~80 rating: IP68 Item size: 150*127*63mm / 5.9*5*2.5in Package weight: Approx. 1490g / 52.5oz Package list: 1 * DC-DC Power Source Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

• ➤ Adopting imported components, conversion efficiency up to 96%,
• ➤ 【Automatic 】 Large input voltage, overcurrent, overvoltage, overheating, short circuit and other built-in automatic functions.
• ➤ 【Quality material】 Sealed with thermally conductive silicone, IP68 and shockproof.
• ➤ 【Easy installation】 Die-cast aluminum case, compact size, easy installation.
• ➤ 【Long service life】 Quality assurance, service life up to 100,000 hours.
