A Pair of 1.25G/s Bidi Gigabit Single-Mode Fiber Ethernet Media Converter with 2PCS Bidi SFP LC Transceiver Module Included, 10/100/1000Base-Tx to 1000Base-SX SMF RJ45 to SFP Slot up to 30KM

Product Include2xSingle-mode Gigabit Ethernet Fiber Media Converter2xBiDi SFP slot LC Transceiver module up to 30km2xDC Power Adapter Output voltage:5V DC/1A1xProduct Manual,Multi-Language Quick Installation GuideFeature Introduction1.Optical Port Data Rate:1.25Gbps,10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter2.Interface: SFP Port+RJ45 Port, RJ45 Port Data Rate: 10/100/1000M auto-negotiation3.Fiber Type:Single-mode, Fiber Connector:Single LC Fiber,Wavelength:1310nm, Reach:20km,Included Power Supply Weight:0.35kgExcellent Function1.Super Heat Dissipation:Air-vent on both sides and metal enclosure provide better heat dissipation,low power consumption and long service life2.Lightning protection.Strong anti-interference ability.High-speed and stability signal conversion.3.Standalone design with simple plug-and-play set-up.Compact size provide more flexible installation options.Dimensions:95x72x27mm(DxW xH)4.Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation ≤3 watts, External Power:AC100V~240V5.High-quality Conversion Chip & Easy Installation,Operating temperature: 0°C to 60°C.Storage temperature:-20°C to 70°C.Humidity:5% to 90% RHWide Applications1.Extend or bridge networks using fiber cable 2.Provide connectivity to users in an isolated area of a large complex or in a separate building3.Ideal for secure connections required by government or corporations where EMI is not acceptableLED Indicators1.FP:Light on when fiber speed is 1000Mbps,else light off2.TP:Light on when TP speed is 1000Mbps, else light off3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active5. PWR: Light on when DC power on,else light off.

• What You Get: 2pcs Gigabit Single-mode Ethernet SFP Slot media converters; 2pcs SFP BiDi LC transceiver; 2pcs AC/DC Power Supply; 1 x User’s Manual. Support wide power supply voltage (100V-240V), Power Supply: 5V-1A, UL Certified.
• Fiber Optical Port: 1.25Gbps 1310-nm wavelength SFP port, connecting the BiDi transceivers up to 30km(2 SFP LX Transceiver included); Fiber Type: SMF, Cable Type: UTP/STP Cat.5e for 100 meters.
• RJ45 Port: 10M/100M/1000M Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.

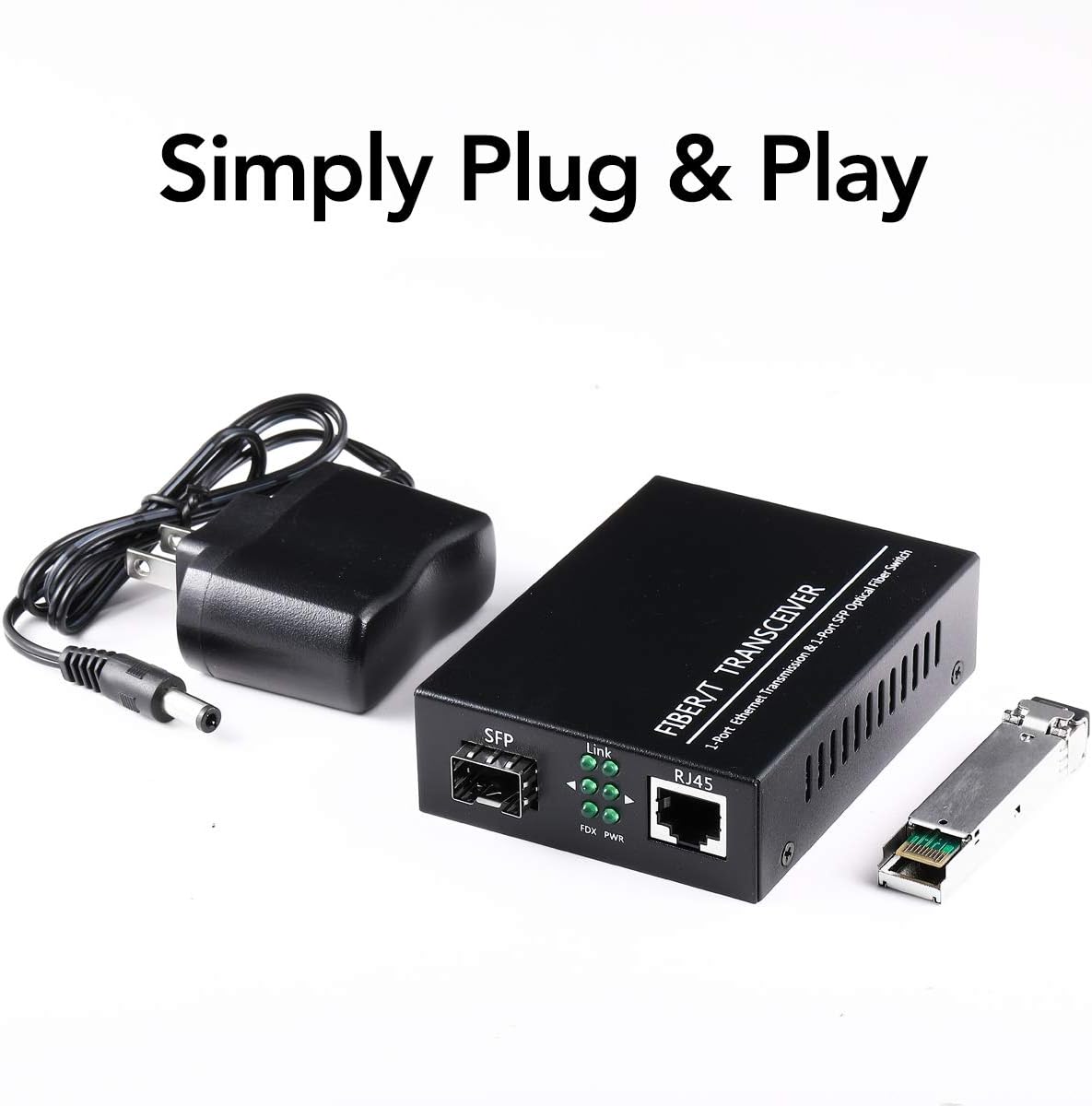

• Plug & Play: Simply plug in optical port and RJ45 port, and it will work immediatelly. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status. Supports jumbo frame size 9K bytes; Supports working temperature range from 0°C to 60°C.
• 【100% Money Guarantee】15 years OEM factory competency, Most efficient technical support with superb processing technology.★Our committed to provide the best product and services to every customer.
