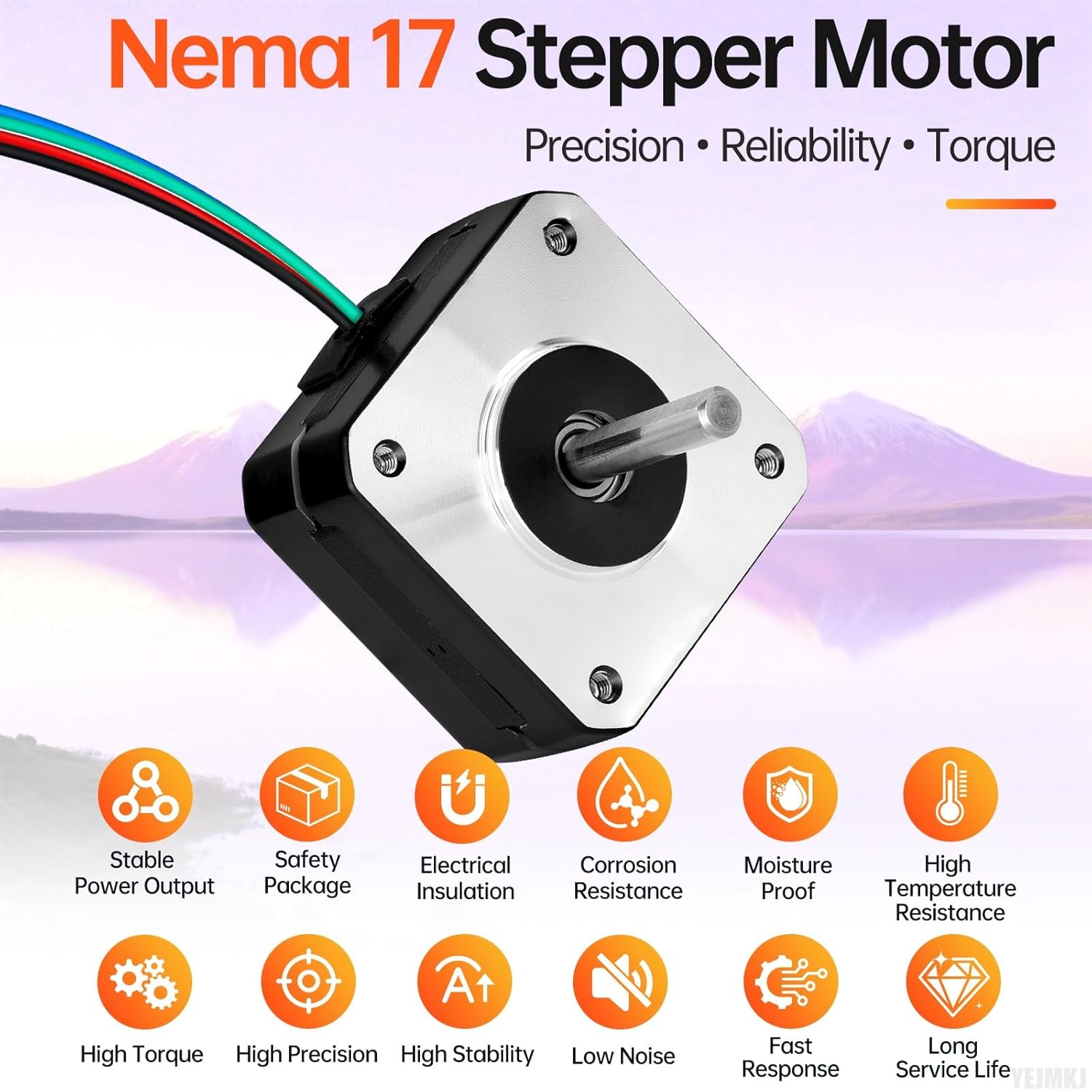

3Pack Nema 17 Stepper Motor 2 Phase 1.8° 0.13Nm(18.41oz·in) High Torque Bipolar 21mm 4.2Ω 1.0A 4-Lead Shaft 24mm φ5mm 42 Stepper Motor Cable 1M for 3D Printer DIY Robot CNC Machine
$21.59
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by news.bongoexpress.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$21.59
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by news.bongoexpress.com
Free 30-day returns Details
Product details
| Management number | 218143517 | Release Date | 2026/05/03 | List Price | $8.64 | Model Number | 218143517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

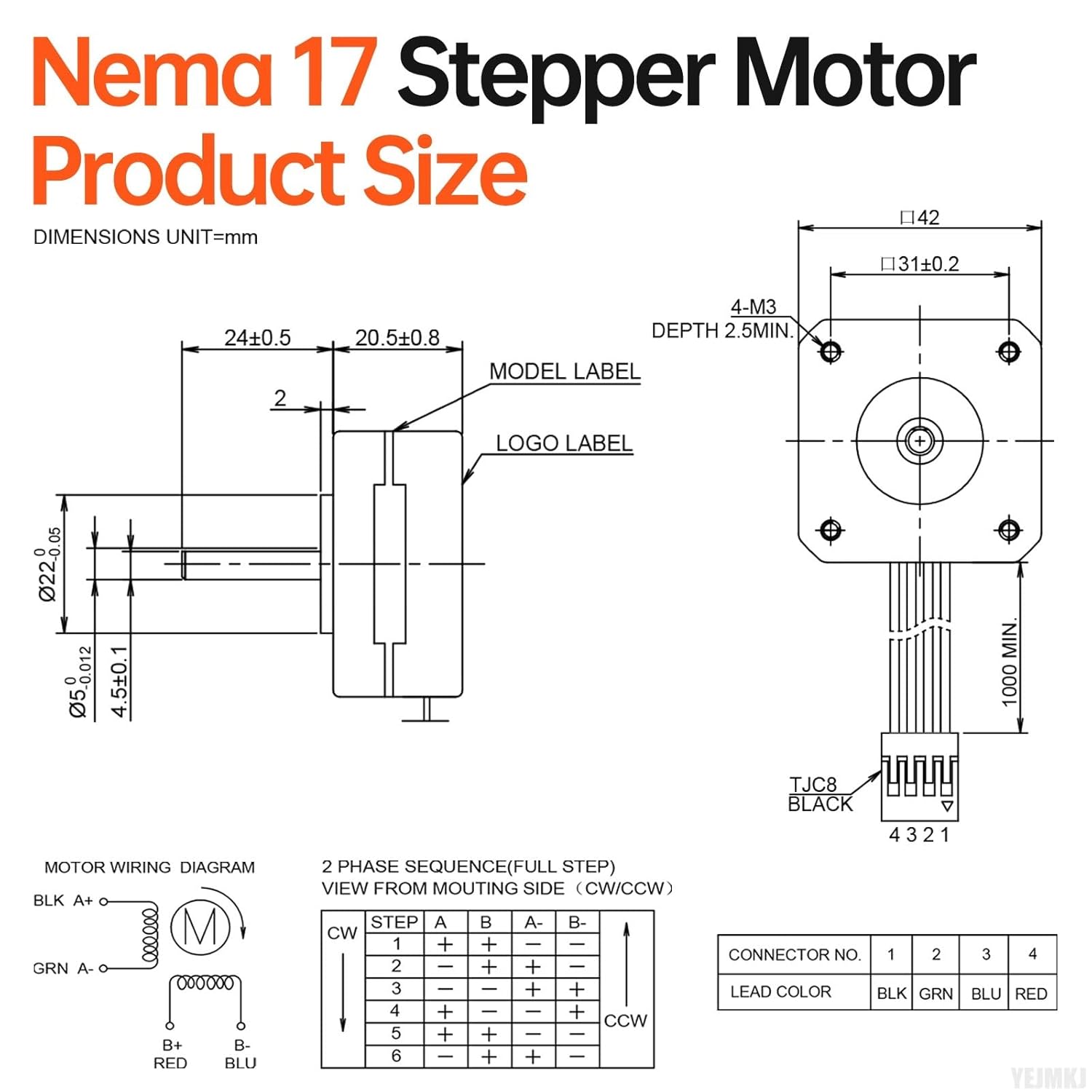

- Specifications: Nema 17 Stepper Motor has the following various dimensional parameters. Body size 42x42x20.5mm(1.66x1.66x0.81in), Shaft length 24±0.5mm, Shaft diameter φ5mm, D-cut length 24mm, Installation hole distance 31mm, incl. Cable 1m, 4-Lead Black (A+) Green (A-) Red (B+) Blue (B-), Weight 124g.
- Performance Data: Nema 17 pancake stepper motor 2 Phase, Step angle 1.8 Degree (200 steps/rev), Holding torque 0.13Nm (18.41oz·in), Resistance 4.2Ω, Rated current 1.0A, Rotor inertia approx 16.5g.cm², Inductance 3.4mH±20%.
- Safety: This 42 Stepper Motor boasts safe and reliable operation, with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity ; Temperature rise 80K MAX.
- Important Notes: As speed rises, torque falls, the recommended speed range is 0–600 RPM. Lower current reduces torque and temperature rise, and lower voltage results in less torque (12–24V DC range). The 42mm Stepper Motor is used in 3D printers, DIY robots, CNC machines, and other automated systems. Its compact size and high torque suit demanding applications.

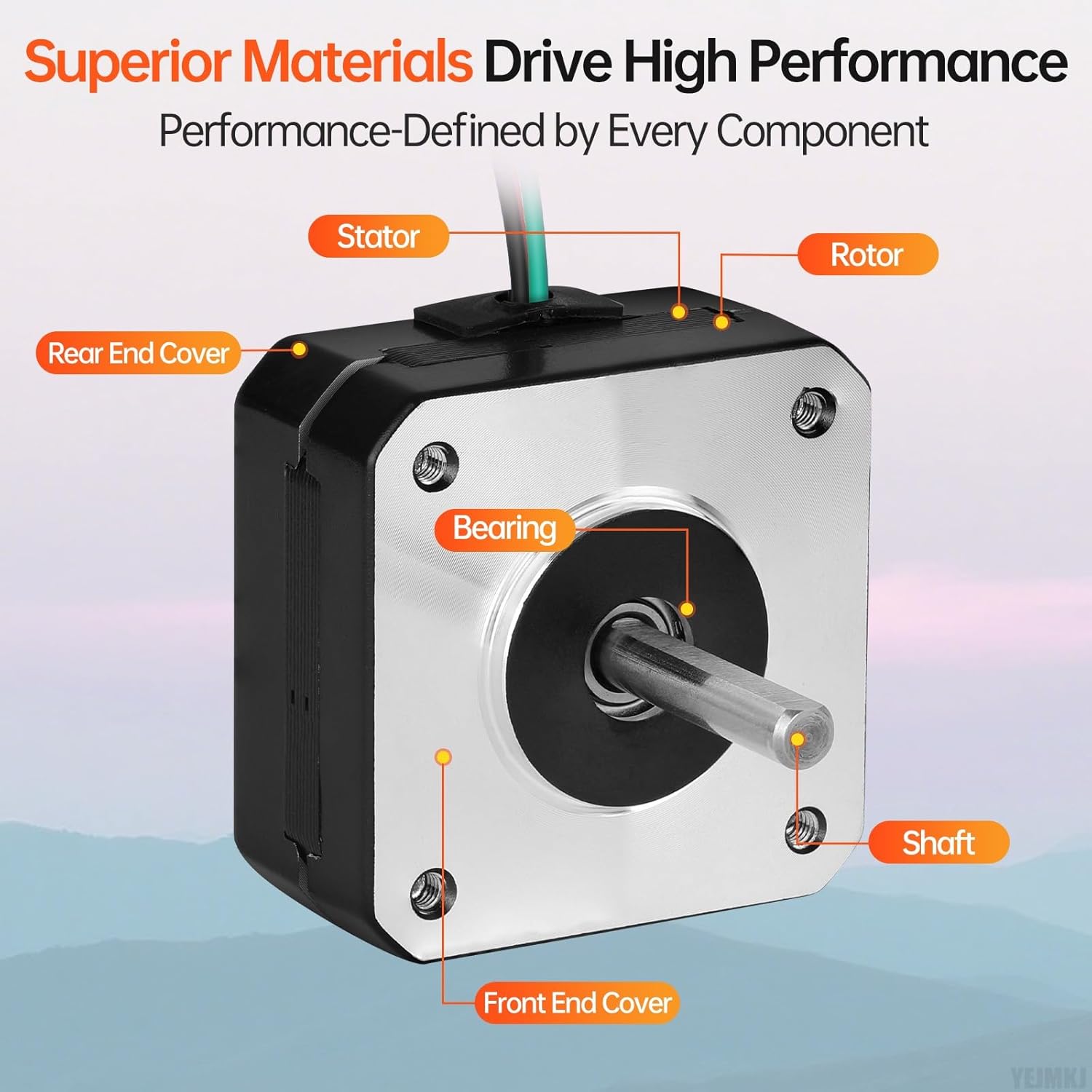

- More Power, Less Noise: Offering up to 20% more holding torque than typical Nema 17 Step Motor, our version focuses on low-noise operation. Its enhanced steel core and winding design ensure smooth motion and significantly decreased sound emission.
